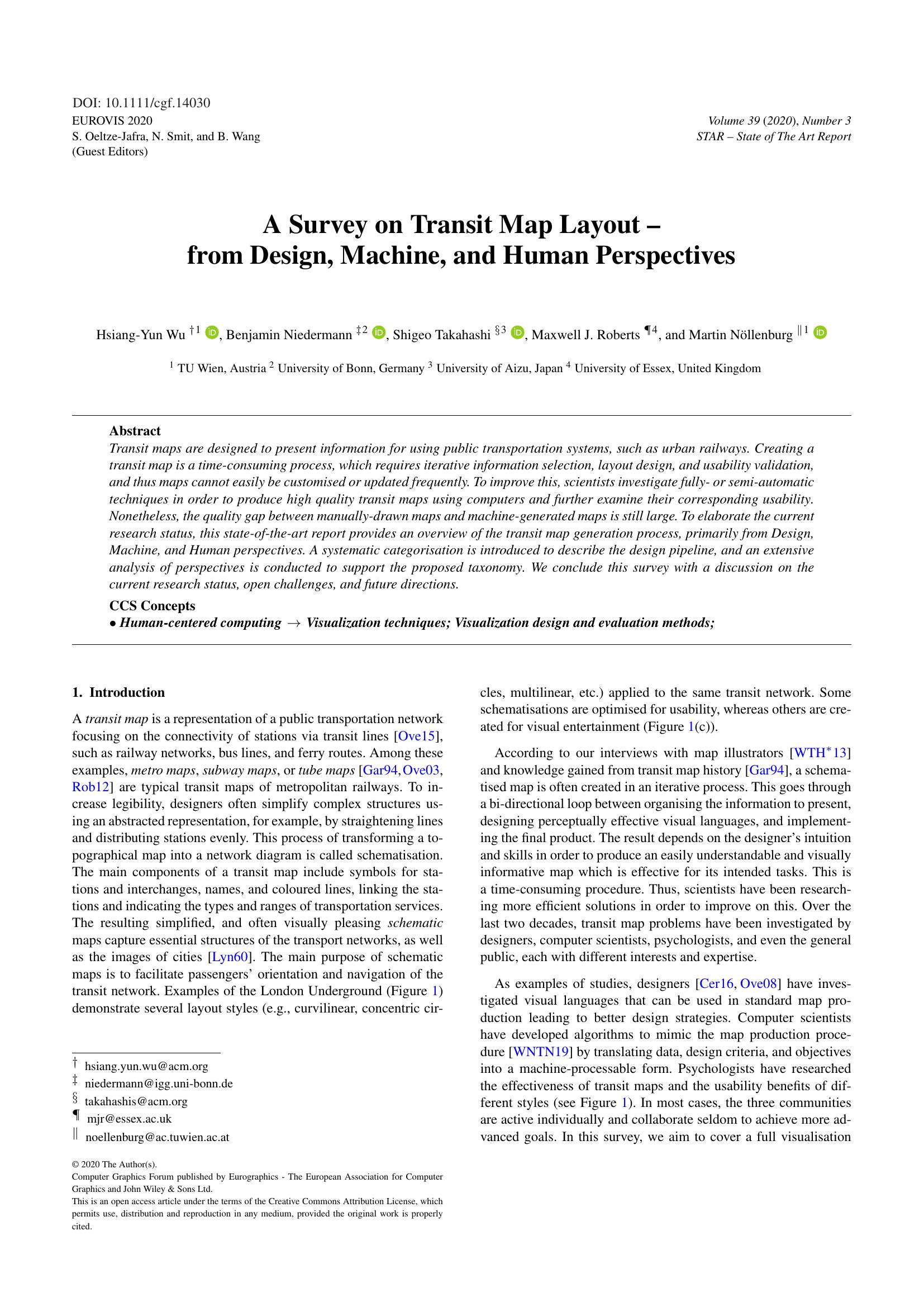

Wu, Niedermann, Takahashi, Roberts and Nöllenburg – A SURVEY ON TRANSIT MAP LAYOUT – FROM DESIGN, MACHINE AND HUMAN PERSPECTIVES 2020

Description

This survey synthesizes two decades of transit-map research across Design, Machine, and Human perspectives, framing maps as schematic trade-offs between geographic fidelity and legibility. It provides a unified taxonomy and catalogues layout types (curvilinear, concentric, multilinear, notably octolinear), global/local criteria (topology preservation, scale distortion, station spacing, simplification, co-routed lines, zoning), labelling rules, visual variables, and application scenarios. The Machine perspective formalizes algorithmic work into layout generation, labelling, and line routing/ordering using optimisation under hard and soft constraints, describing various exact, approximate, and heuristic methods. The Human perspective reports empirical findings on how micro- and macro-layout features influence route choice and planning, revealing a persistent “usability gap” between designer aesthetics, user preferences, and objective performance. Evaluation is hindered by subjectivity and scarce benchmarks. The authors identify gaps—automatic outputs lag professional maps—and call for multidisciplinary integration: automated stimulus generation, refined metrics, human-in-the-loop workflows, scalable algorithms, and personalized, validated map designs for practical deployment.
