Chivers – METRO MAP INPUT AND LAYOUT AUTOMATION 2014

Description

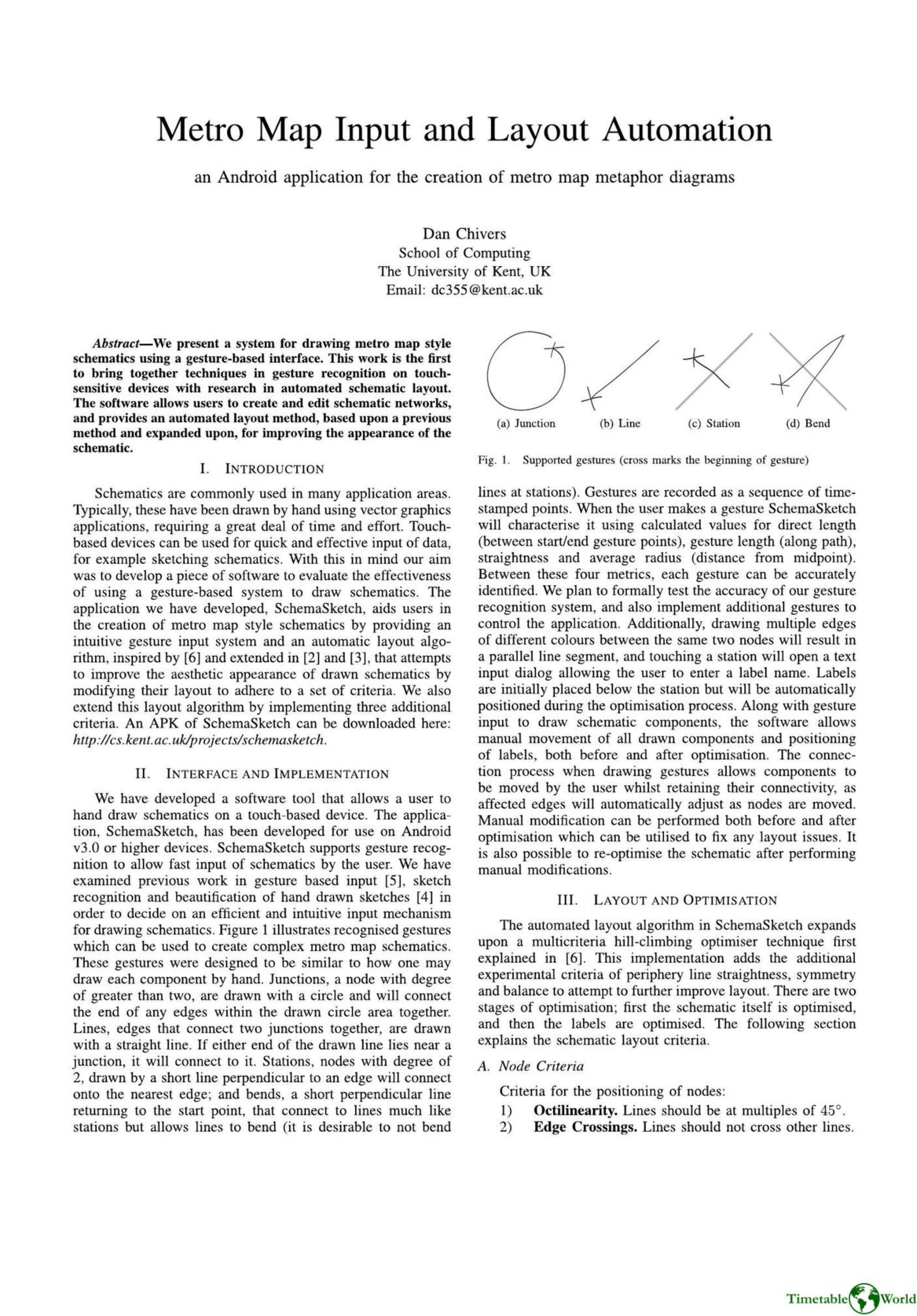

This concise, two-page academic paper, authored by Dan Chivers from the University of Kent, introduces SchemaSketch, an innovative Android application designed for creating metro map-style schematic diagrams. Published in the early 2010s, this work is particularly noteworthy as the first to integrate gesture recognition on touch-sensitive devices with automated schematic layout techniques. The document, rich with two illustrative figures demonstrating recognized gestures and an optimized Sydney metro map example, outlines an intuitive input system and a sophisticated, criteria-based layout algorithm. Its research-backed approach provides a robust framework for improving diagram aesthetics and efficiency. For those interested in practical application, an APK download link is provided, allowing direct engagement with this academically rigorous and highly practical tool.
